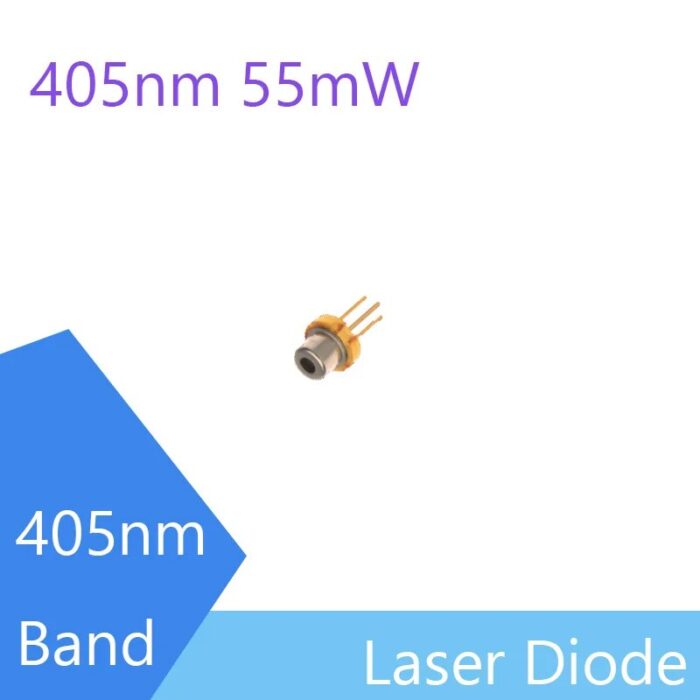

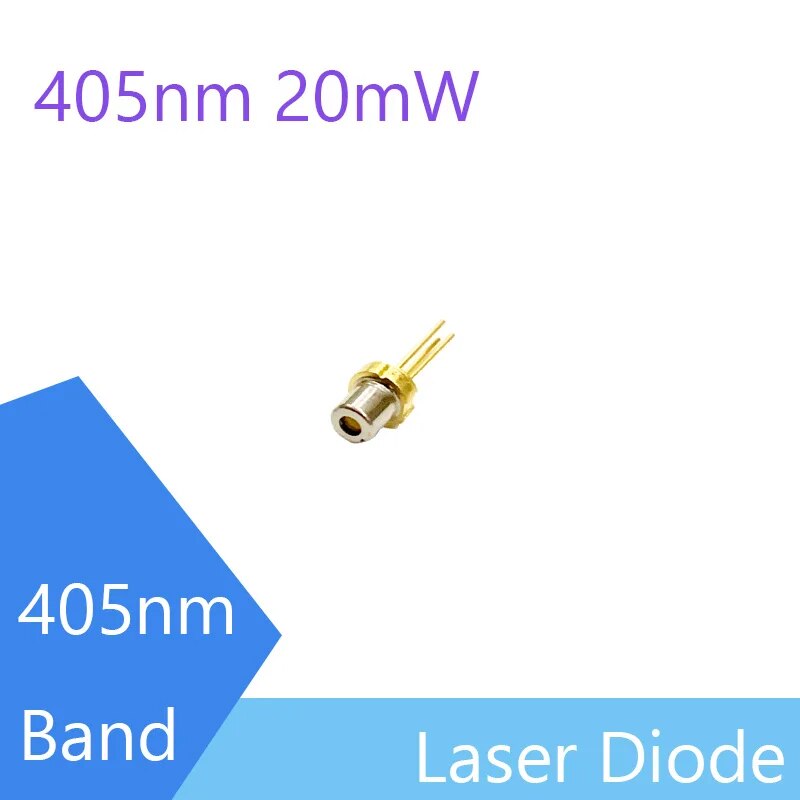

New Nichia 405nm 20mw-55mw Violet Laser Diode 3.8mm TO38 ld-light NDV1342 Brand:Nichia      Model Number: NDV1342     Origin: JP(Origin)     Item Type: Stage Lighting Effect     Light Output: 20mW    Operating Voltage: 4.4V    Operating Current: 30mA Features 1. Absolute maximum ratings：55mW (CW) 2. Φ3.8mm package,Floating Mounted Electrical and Optical Characteristics(Tc=25℃) Lasing Wavelength:405nm Optical Output:20mW Threshold Current:16mA Operating Current:30mA Operating Voltage:4.4V Operating Temperature:-10 to 80℃ Beam Divergence(FWHM) Parallel:9deg Perpendicular:19deg External dimensions(Unit : mm) Pin Description Pin1 LD Anode Pin2 LD Cathode Pin3 NC(case)
