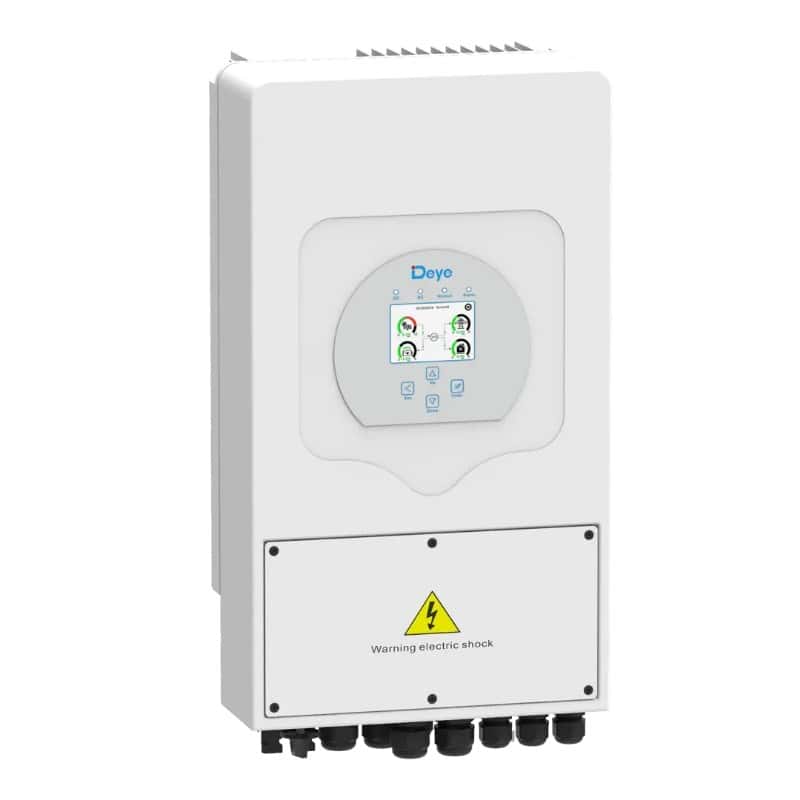

Deye 5KW Single Phase Hybrid Inverter – Includes: Wi-Fi Dongle BMS Communication Cable Key Features LCD Touch screen and buttons, easy operation Compatible with lithium-ion battery and lead acid battery Web browser and mobile App monitoring supported Improve self-consumption ratio up to 80%, reducing your electricity bill DC/AC ratio up to 1.3, completely suitable for double-side PV modular Two MPPT design, Max. efficiency of 97.6% Programmable charging and discharging schedule Both wind turbines and solar panels can be connected as DC input power 5 Year Warranty – Enjoy a 10 year step-up warranty on the Deye Inverter if paired with the VOLTA or HUBBLE AM-5 Battery SA Edition Technical Specifications Higer yields Improve self-consumption ratio up to 80%, reducing your electricity bill. DC/AC ratio up to 1.3, completely suitable for double-side PV modular. Two MPPT design, Max. efficiency of 97.6%. User-friendly LCD Touch screen and buttons, easy operation. Compatible with lithium-ion battery and lead acid battery. Web browser and mobile App monitoring supported. Reliable PV lighting protection, Anti-islanding protection, Leakage current protection etc. Support store energy from DG when needed, ensure the system working within 7*24H. IP65 protection degree, adapt to indoor and outdoor using. Automatically switch from on-grid to off-grid mode within 5ms. Zero exporting function, fast reaction within 200ms in zero export mode. Smart Programmable charging and discharging schedule. Both wind turbines and solar panels can be connected as DC input power. Max. 16 units can be paralleled for higher system power. Retrofitting of existing solar system to energy storage system. Battery Input Data Battery Type: Lead-acid or Li-lon Battery Voltage Range (V): 40-60V Max. Charging Current (A): 120A Max. Discharging Current (A): 120A Charging curve: 3 Stages/Equalization External Temperature Sensor: Optional Charging Strategy for Lithium Battery: Self-adaption to BMS PV String Input Data Max. DC Input Power (W): 6500W. PV input Voltage (V): 370V (100V-500V). MPPT Range (V): 125-425V. Start-up Voltage (V): 150V. PV Input Current (A): 11A 11A. No. of MPPT Trackers: 2 No. of Strings Per MPPT Tracker: 1 1. AC Output Data Rated AC Output and UPS Power (W): 5000W Max AC Output Power (W): 5500W Peak Power(off-grid): 2 times of rated power, 10 S. AC Output Rated Current(A): 21.7.4A Max.AC Current(A): 25A Max Continuous AC Pass-through(A): 35A. Output Frequency and Voltage: 50Hz; 240Vac, Grid Type: THD<3%(Linear load<1.5%). Current Harmonic Distortion: THD<3% (Linear load<1.5%). Efficiency Max. Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type) PV Input Lightning Protection: Integrated Anti -islanding Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Residual Current Monitoring Unit: Integrated Output over Current Protection: Integrated Output Shorted Protection: Integrated Output over Voltage Protection: Integrated Certifications and Standards Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 Safety Regulation: IEC62109-1, IEC62109-2 EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B General Data Operating Temperature Range ( C ): -25—60 C , >45 C Derating Cooling: Fan Noise (dB): <30 Communication with BMS: RS485; CAN Weight (kg): 20.5 Size (mm): 580 X 330 X 208mm Protection Degree: IP65 Installation Style: Wall-mounted Warranty: 5 years
