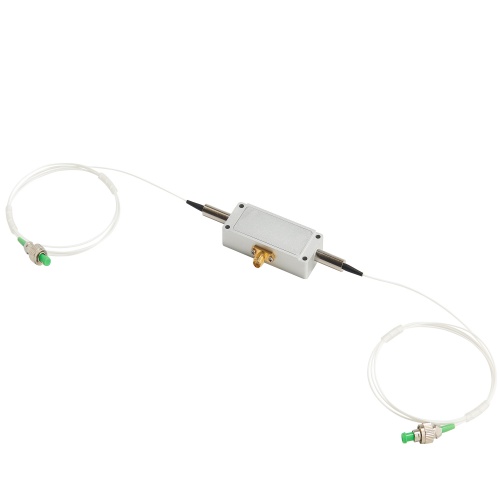

1310nm 200MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)

1310nm 200MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM) parameter material :TeO2 wavelength:1310nm Average optical power handling : 0.5W Peak (pulsed) optical power: 0.5kW Ultrasonic sound velocity : 4200m/s Insertion loss :5dB Polarization Extinction Ratio：18dB Extinction ratio : 60dB Return loss: 40dB Rising edge time ：10ns frequency :200MHz Frequency shifting : 200MHz（ Customizable -200） Frequency stability: 200 /-0.1%MHz RF power :2.5W Voltage VSWR :1.2:1 Input impedance: 50Ω Device interface SMA Fiber type ：PM71550 Fiber length： 1m Fiber optic interface： FC/APC Operating temperature ：-20~60℃ Storage temperature ：-30~70℃
